Lincoln K3570-2 Magnum® Pro 250LX Spool Gun - 25 ft
$ 2,830.00

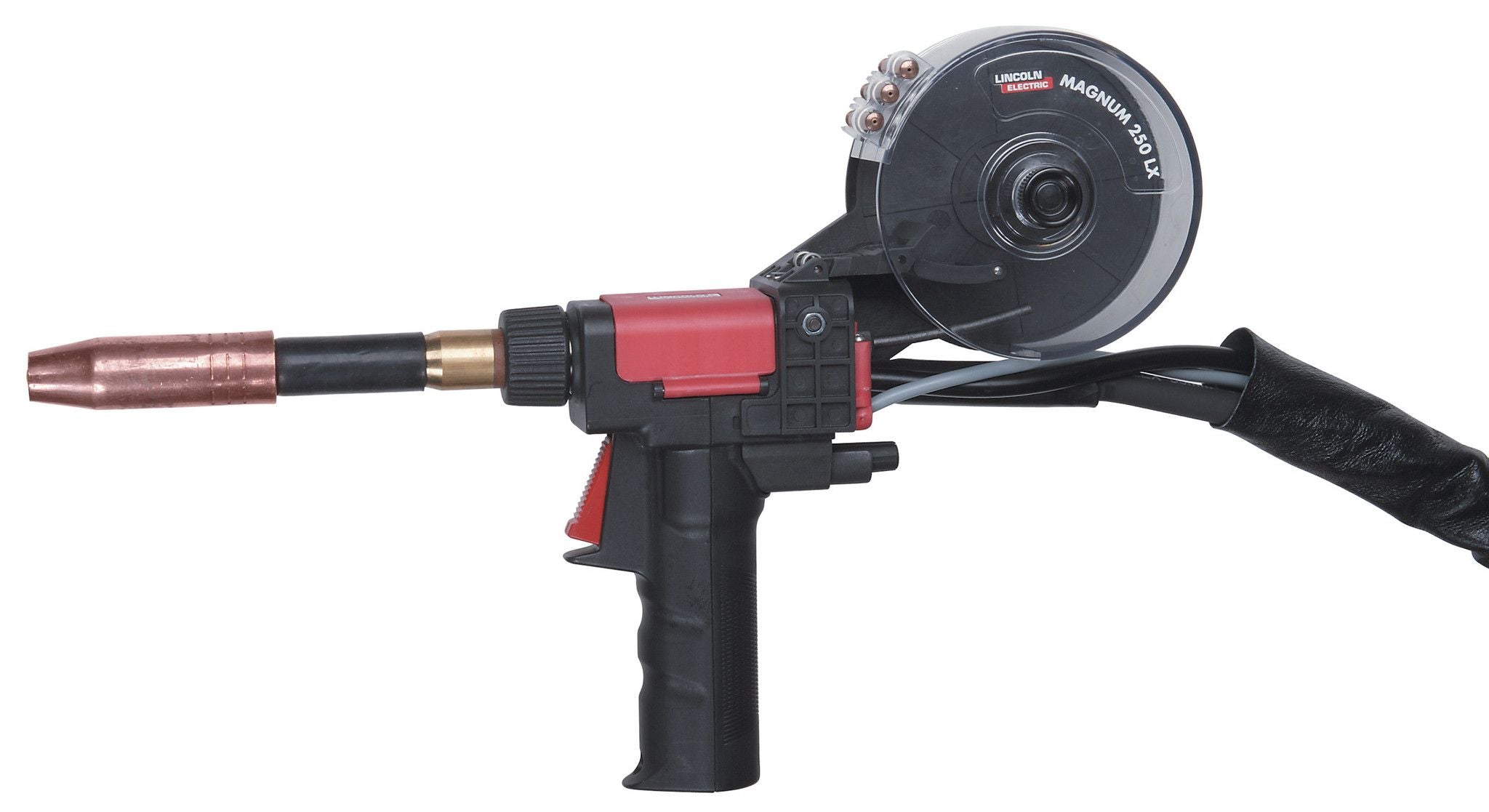

Lincoln K3570-2 Magnum® Pro 250LX Spool Gun - 25 ft
VERSATILITY WITHOUT HASSLE
The Magnum PRO 250LX spool gun partners longer-lasting Magnum Pro contact tips with a durable spool gun design, making it the most versatile accessory for the Power MIG® family.
Processes
- Aluminum MIG, MIG Steel
Wire Diameter Ranger
- .030" - 3/64" (0.8 - 1.2 mm) Aluminum
- .025" - .035" (0.6 - 0.9 mm) Steel
- Features & Benefits
- Specifications
- Included
- Accessories
- Drive Rolls
- Contact Tips
- Nozzles
- Diffusers
- Insulators
- Liners
- Gun Tubes
MAGNUM PRO EXPENDABLES
- Utilizes premium Magnum PRO expendables for extended contact tip life, increasing the amount of arc-on time
CONNECTS EASILY AND EFFECTIVELY
- Plugs directly into the POWER MIG 256 and POWER MIG 260 without the need for an additional adapter

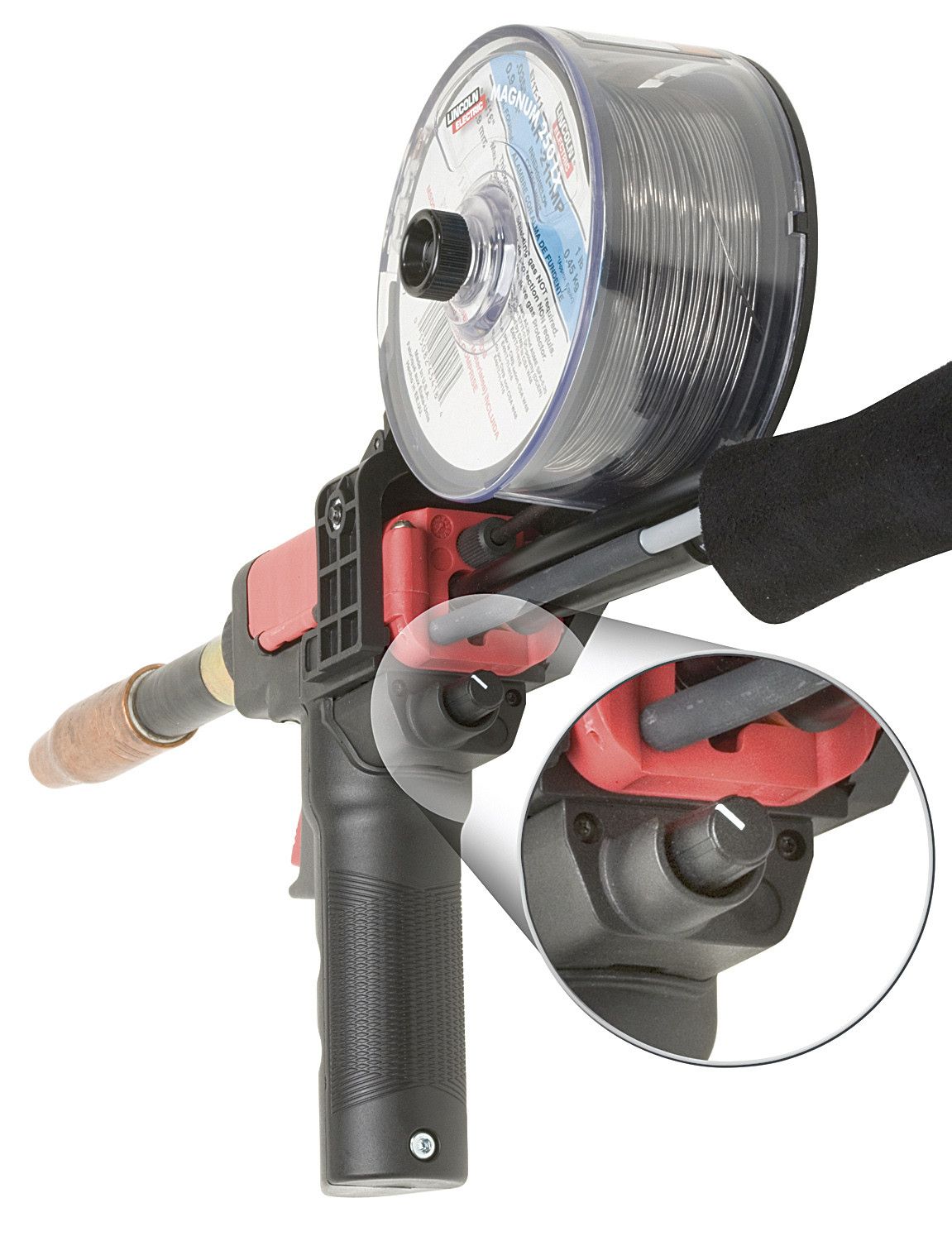

MULTI-TURN WIRE SPEED ADJUSTMENT
- Adjusts wire speed remotely at the gun with fine resolution so there is no need to travel back to the power source

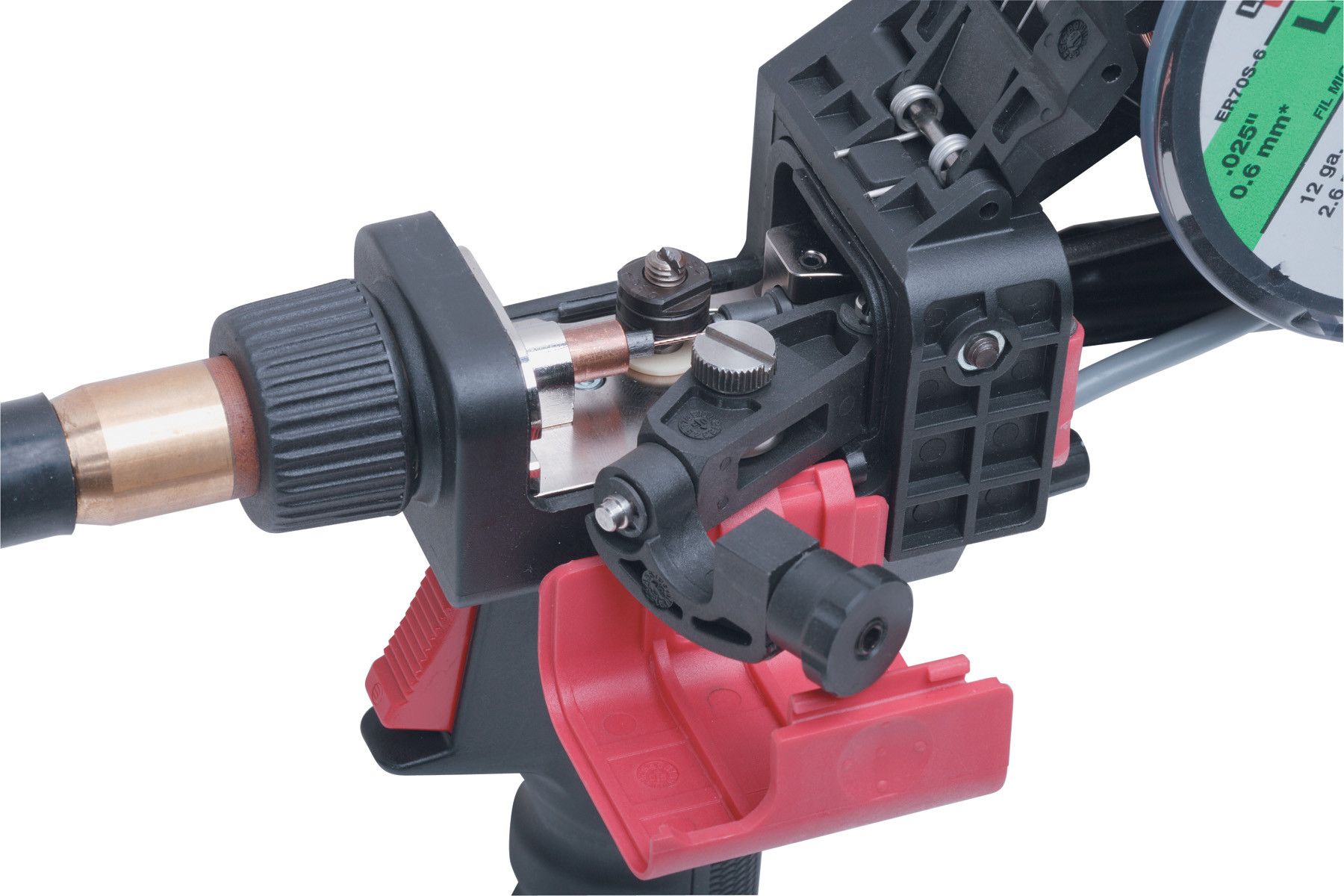

TOOL-LESS DRIVE ROLL TENSION
- Large thumbscrew makes fine adjustment of drive roll pressure effortless
- Setscrew allows for coarser adjustment if needed for steel
| DUTY CYCLE | 60% |
| RATED AMPERAGE |
|
| GUN TYPE | Spool Gun |
| CABLE LENGTH | 25 ft. (7.6 m) |
| WIRE DIAMETER | Aluminum: .030" - 3/64" (0.8 - 1.2 mm) Steel: .025" - .035" (0.6 - 0.9 mm) |
| COOLING | Air Cooled |
| NET WEIGHT | 13.5 lb (6.12 kg) |
- KP2747-1A - Diffuser, Thread-on, Aluminum 550A
- KP2743-1-62RA - Gas Nozzle Assembly, Aluminum , 5/8" Recessed
- KP2745-364AT - Tapered Contact Tip, Aluminum, 3.64"
- KP2518-2 - Drive Roll, Aluminum, .030"/.035" - 3/64"
- KP2879-5 - Barrel Liner, 180°
- KP2773-1 - Insulator, 550A
| CATEGORY | PRODUCT NUMBER | PRODUCT NAME |
| General | K3068-1 | Lincoln Power MIG 256 MIG Welder |
| General | K3520-1 |
Lincoln Power MIG 260 MIG Welder |
| PRODUCT NUMBER | PRODUCT NAME |
| KP2518-1 | Lincoln .025" / .035" Steel Drive Roll |
| KP2518-2 | Lincoln .030" - .035" / 3/64" Aluminum Drive Roll |
| PRODUCT NUMBER | PRODUCT NAME |
| KP2744-025T | Lincoln Copper Plus Contact Tip, 350A, .025" Tapered |
| KP2744-035AT | Lincoln .035" Copper Plus Aluminum Tapered Contact Tip |
| KP2744-035T | Lincoln Copper Plus Contact Tip, 350A, .035" Tapered |
| KP2744-364AT | Lincoln 3/64" Copper Plus Aluminum Tapered Contact Tip |
| KP2745-035AT | Lincoln .035" Copper Plus 550A Aluminum Tapered Contact Tip |
| KP2745-364AT | Lincoln 3/64" 550A Aluminum Tapered Copper Plus Contact Tip |
| KP2745-030A | Lincoln .030" 550A Aluminum Copper Plus Contact Tip |
| PRODUCT NUMBER | PRODUCT NAME |
| KP2742-1-62R | Lincoln Nozzle 350A, Thread-On, 1/8" Recessed |
| KP2743-1-62R | Lincoln Nozzle 550A, Thread-On, 1/8 Recessed Aluminum |
| PRODUCT NUMBER | PRODUCT NAME |
| KP2746-1 | Lincoln Magnum Pro 250L Gas Diffuser |
| KP2747-1A | Lincoln 550A Thread-On Aluminum Diffuser |
| PRODUCT NUMBER | PRODUCT NAME |
| KP2773-1 | Lincoln Gooseneck Insulator 550A |
| KP2773-2 | Lincoln 250A/350A Insulator for Magnum Pro Guns |
| PRODUCT NUMBER | PRODUCT NAME |
| KP2879-1 | Lincoln Barrel Liner 45° and 60° Angle (.035" - 1/16") |
| KP2879-2 | Lincoln Barrel Liner 180° Angle (.035" - 1/16") |
| KP2879-4 | Lincoln 45/60° 550 Amp Expendable Liner |
| KP2879-5 | Lincoln 180° 550 Amp Expendable Liner |
| PRODUCT NUMBER | PRODUCT NAME |
| KP3682-45 | Lincoln 45° Barrel w/ Nut for Magnum Pro® 250LX /Magnum® Pro 250LXGT |
| KP3682-60 | Lincoln 60° Barrel w/ Nut for Magnum Pro® 250LX /Magnum® Pro 250LXGT |
| KP3682-180 | Lincoln 180° Barrel w/ Nut for Magnum Pro® 250LX /Magnum® Pro 250LXGT |
